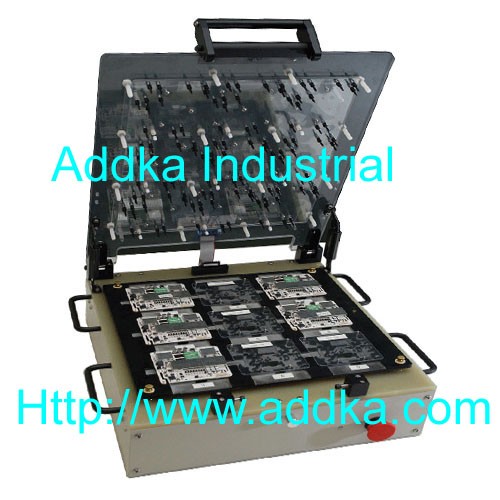

Multiple PCB test fixture Handy Press PCB test fixture clamp
Universal Testing jig and Fixture,Pure and blank fixture
The test fixtures have been used for both engineering evaluation and production test.
PCB test jig,BGA test jig,LCD test jig,SMT test jig,ICT test jig
PCB test fixture,BGA test fixture,LCD test fixture,SMT test fixture,ICT test fixture
We can offer you the following services:
1 To map processing, according to your design drawings or videos to complete processing, and according to the need of assembling;
2 According to the specific requirements of the design, the first technical proposal ( including the specific structure, measuring principle, wiring methods ), to be customers to confirm the OK, we are responsible for processing, if necessary, can complete the connection all the work;
Analysis of 3 principle of products provide a full set of test technique, such as ICT testing tool, we provide professional technical services, from the structural design, processing, assembling, wiring, programming.
Anodizing, Electroplating, Polishing, Powder Coating, Blacken, Hardening, Painting and many other treatment of the parts.
Usually you can provide three kinds of information to us to make:
1)PCB files ( portel99, DXF, GERBER format can open ) if there is no figure file, need to provide space for copy PCB.
2)There are parts of the PCBA, front, side, bottom, mark the highest DIP part height.
3)Please use the drawing tool mark needle placement in the picture.
Some special circumstances need to provide in-kind, such as plastic parts positioning, shaped parts.
Fixtures to test medical hybrids, hybrids used for space satellites, multi-chip silicon-on-silicon modules, optical devices, cell phones, RF sub-assemblies, finger print detectors, guitar amplifiers, and many other applications.
we do ofen customised test jig design and manufacturing. All the PCB products must been 100% full tested.
Custom and Semi-Custom Test Fixtures,PCB manually quick clamp test fixture,PCB test Jig,ICT test,PCB test fixture,Card buckle test fixture,Pneumatic test PCB fixture,Pneumatic hot-pressing fixutre,Crank stent test fixture.
1) Product description:testing jig and fixture
2) Material:Aluminium,Steel, Brass, Copper, Stainless steel, Plastic, POM, Delrin, Titanium Alloy etc.
3) Surface treatment:Zinc plating, Anodization, Chemical fim, Powder, Passivation, Sand blasting, Brushing & ploshing etc.
4) Processing equipment:CNC machining center, CNC lathe, grinding machine, automatic lathe machine, conventional lathe machine, milling machine, EDM etc.
5) Inspection equipment:2.5D images measuring instrument, Roughness meter, slide caliper,micrometers, universal angle rule, gauge block,dial indicator, thread gauge etc.
6) Our services:CNC machining, Milling, Turning, Grinding, Stamping etc, and assembly
7) QC system:100% inspection before shipment, Third Party inspection available upon request.
8) Packing:Foam, Carton, Wooden boxes, as customized requirements
9) Payment Terms:TT; PayPal or Western Union is acceptable.
10) Product Scope:CNC machining/turning parts /Jig & Fixture design and make/Heat sink,golf putter CNC prototyping/Sheet metal parts/Display and other metal accessories, Automation equipment etc.
11) Application:Automation machine,industrial machine,electric appliance, Auto Parts, Furniture Parts,Machinery Parts, Light fittings etc.
12) cooperation customer:USA,UK,Germany,Italy,Belgium,Rumania,Mexico,Thailand,Indonesia,India, Japan, Southeast Asia .
The testing jigs are used for:
Consumer Electronics:Video, Audio products, Bluetooth products, cafe Machine
Industrial control:Motor Control board, Industrial Control, Machine Board…etc.
Wireless industry:Smart Card Readers, NFC, WIFI, Wireless communication
Tele-communication:IP phones, CDMA/GSM modules, VOIP
Medical:electrocardiograph monitoring, Blood Press Meter, Stethoscope
Plastic/Metals:Metal Emblems, Stapler, Calculators, Screw Driver, Hammer
And many other OEM/ODM products
